CMAXX Plasma & Laser Fume Extractor System

The CMAXX™ plasma and laser fume extractor system comes completely wired from the factory. Just plug it in and push start. With its heavy-duty modular construction and reliable performance, this CMAXX™ LASER model has true CMAXX™ dust collector system qualities. The packaged system comes standard with DeltaMAXX™ Nanofiber fire retardant pleated filter cartridges.

The CMAXX™ Laser and Plasma Table Fume Extraction System comes completely wired from the factory. All you need to do is plug it in and push start. When it comes to its heavy duty modular construction and reliable performance, the CMAXX™ Laser dust collector system model has true CMAXX™ dust collector system qualities. This packaged dust collector system comes standard with the DeltaMAXX™ Nanofiber fire retardant pleated filter cartridges.

CMAXX™ LASER Features

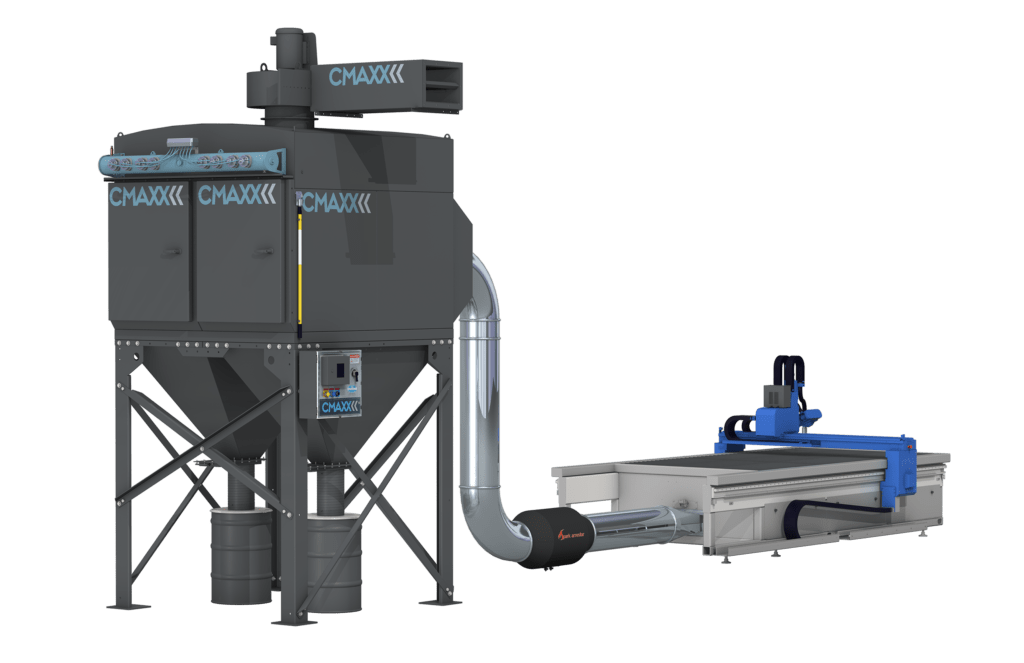

CMAXX Laser fume extractor system for CNC laser tables
  • Space Saving – Low Profile Design, Small Footprint
  • Vertical Cartridge Design – Longer Filter Life
  • Best in Class – Internal Velocities are 20% Lower
  • Military Grade Door Latches. No Truck Trailer Hardware
  • 15 Year Manufacturer’s Warranty
  • Lowest Internal Velocities from a Larger Housing – Longest Filter Life
  • Graphite Industrial Enamel: Corrosive Resistant Paint; Inside and Outside
  • Energy Efficient, High-Performance Manifold Mounted Pulse Valves – Increased Cleaning Power
  • Tool-free, Heavy Duty Filter Door – Less Service Time
  • Modular Design – No External Bolts on Dirty Air Plenum – Less Chance for Water and Air Leaks
  • Heavy Duty 7 & 10 Gauge Construction; Nickel Plated Hardware
  • Air Pressure Gauge on Compressed Air Manifold
  • High Efficiency – Cleaner Plant Air
  • PD Technology – Up to Twice the Filter Life
  • Factory Assembled Air Header and Top Section – In Most Cases, Hopper and Legs Ship Disassembled
  • No Internal Frame on Dirty Air Plenum – Fewer Internal Ledges for Material to Build Up

CMAXX™ Advantages for Plasma and Laser Cutting Tables

CMAXX™ Advantages for Plasma and Laser Cutting Tables

  • Factory pre-wired and ready to run. Just wire, add compressed air and push start.
  • Tool-free Filter Access
  • Tool-free Filter Change Out
  • Goyen premium reverse air cleaning systems. Requires 13 SCFM @ 70 PSI modular design.
  • 3/16″ plate and 10 gauge carbon steel construction
  • DeltaMAXX™ fire retardant filters with 1400 sq. feet of filter media
  • 1 pre-wired and pre-plumbed control panel complete with motor starter.
  • Built-in spark trap designed for laser table systems.
  • Virtually any collector configuration to custom fit into your location.
  • Fan silencer rated for 75dba MAX
  • Integrated HEPA after filter (optional)

The CMAXX™ LASER fume extraction system has the best cleaning efficiency and offers the longest life in the industry.

An inside look at the CMAXX Laser fume extractor system

The CMAXX™ LASER fume extractor system is designed with revolutionary PD Technology for maximum cleaning performance

  • Delivers 100% Total Pulse Distribution Across the Filter Media – Standard pulse systems leave the filter with a 30% dead zone from negative pressure
  • High Quality Goyen GoCo Cone Nozzles Located Closer to the Filter Media
  • Up to 40% More Cleaning Power – Up to Twice the Filter Life
Use only DELTAMAXX replacement filters for your CMAXX Laser fume extractor

The CMAXX™ LASER fume extractor is designed for DeltaMAXX™ Replacement Cartridge Filters. The DeltaMAXX™ High-Efficiency Replacement Cartridge Filter delivers the longest filter life, cleanest air, and greatest cost savings.

  • Most Advanced NanoFiber Technology
  • MERV 15 Filtration Efficiency – best in the industry
  • Surface Loading
  • Lower Operational Mass Emissions
  • Less Pulse Cleaning
  • Reduced Dust Collector Operational Costs
  • Longest Filter Life
  • Highest Quality Pleated Media
  • 99.9% Efficiency on 0.3 to 0.5 Micron
