Airlocks

Utilizing an Imperial Systems, Inc. HD Airlock on a dust collection system allows for constant operation without the need to shut down and empty containers, minimizing employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

Utilizing an Imperial Systems, Inc. HD Airlock on a dust collection system allows for constant operation without the need to shut down and empty containers, minimizing employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

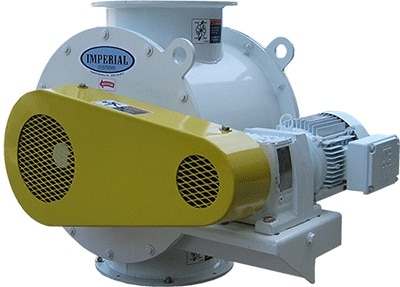

Heavy Duty Airlocks

Imperial Systems, Inc. Heavy Duty Airlocks are engineered to outlast all other airlocks.The unit offers the tightest flexible seal, allowing larger particles to easily pass through the valve while maintaining the air seal. Utilizing an Imperial Systems, Inc. HD Airlock on a dust collection system allows for constant operation without the need to shut down and empty containers, minimizing employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

Imperial Systems, Inc. Heavy Duty Airlocks are engineered to outlast all other airlocks.The unit offers the tightest flexible seal, allowing larger particles to easily pass through the valve while maintaining the air seal. Utilizing an Imperial Systems, Inc. HD Airlock on a dust collection system allows for constant operation without the need to shut down and empty containers, minimizing employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

Options

  • Various voltage motor
  • Variable speed selection
  • Viton® wipers: Temperature Range is -14°F to 400°F
  • Custom bolt patterns for inlet and outlets
  • Custom transitions available

The HD Airlock has been designed with service in mind. No special tooling is required to replace wear parts, minimizing downtime.

Features

  • 3/8″ fiberglass reinforcement between each 3-ply rubber vane tip.
  • Temperature Range is -20°F to 170°F
  • Roller chain and sprocket drive including a heavy-duty gear reducer
  • Round flanged inlet and outlet (Note: optional square inlet and outlet available at no extra charge)
  • Premium Efficiency 2 HP Motor. 230/460/60 Hz/3 phase motor – UL Listed
  • Sealed, 4-bolt flange outboard bearings
  • Primed and painted industrial enamel
  • Standard models are suitable for up to 24” W.C.

Advantages

  • Engineered by the Dust Collection Experts
  • Robust 3/8” Plate & 10 Gauge Carbon Steel Construction
  • Precise, Strong Welds
  • 8 Vane Removable Rotor

Imperial Systems Flexible Tip Airlocks meets and exceeds the following criteria from FM Global.

“Concerning the need for a flexible vane tip in addition to a close tolerant metal tip vanes for rotary valves my answer is as follows: The criteria for the vane tips are it must be at least 3-ply of rubber with fiberglass reinforcement between the plies of rubber and ⅜ in. thick.”

-FM Global

Low Profile Airlocks

Low Profile Airlocks feature a compact design and is a less expensive alternative to our HD Airlocks. The unit offers the tightest flexible seal to ensure minimal, if any, air leakage.It is used in low-pressure applications, such as on the bottom of a dust collector and for handling dry, free flowing, non-abrasive materials. It minimizes employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

Low Profile Airlocks feature a compact design and is a less expensive alternative to our HD Airlocks. The unit offers the tightest flexible seal to ensure minimal, if any, air leakage.It is used in low-pressure applications, such as on the bottom of a dust collector and for handling dry, free flowing, non-abrasive materials. It minimizes employee exposure to dust and makes the system less susceptible to material back-up and filter damage.

Options

  • Various voltage motor
  • Variable speed selection
  • Viton® wipers: Temperature Range is -14°F to 400°F
  • Custom bolt patterns for inlet and outlets
  • Custom transitions available

The LP Airlock has been designed with service in mind. No special tooling is required to replace worn parts, minimizing downtime.

Features

  • 3/16” Nitrile Rubber (Buna-N) Wipers: Temperature Range is -20°F to 170°F
  • 6 vane removable rotor
  • Roller chain and sprocket drive including a heavy-duty gear reducer
  • Flange pattern is suitable for round or square connections
  • Premium Efficiency 2 HP Motor. 230/460/60 Hz/3 phase motor – UL Listed
  • Sealed, 4-bolt flange outboard bearings
  • Primed and painted industrial enamel
  • Standard models are suitable for up to 24” W.C.

Advantages

  • Engineered by the Dust Collection Experts
  • Robust 1/4” Plate & 10 Gauge Carbon Steel Construction
  • Precise, Strong Welds

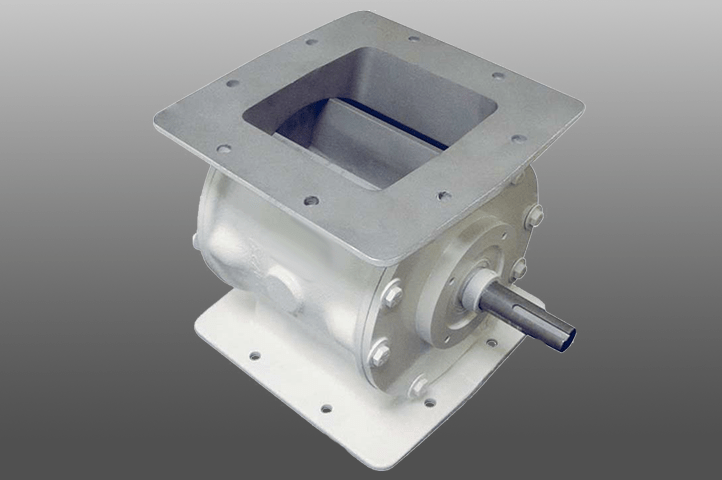

Cast Iron Airlocks

An economical valve that’s suited for general use under dust collector, cyclones, and hoppers. This airlock boasts 8 blade rotors, precision machining, and a rugged cast iron housing for efficient operation.

An economical valve that’s suited for general use under dust collector, cyclones, and hoppers. This airlock boasts 8 blade rotors, precision machining, and a rugged cast iron housing for efficient operation.

The Cast Iron Airlock has been designed with service in mind. No special tooling is required to replace wear parts, minimizing downtime.

Advantages

  • Easily retrofits into existing spaces
  • NFPA-69 Tested and Certified
  • Cast Iron Construction
  • 8 Blade Rotors
  • Sizes: 6, 8,10 and 12-inch square

Options

  • Beveled Rotor Tips
  • Motion Switch
  • TEXP Motor (For use in hazardous environments)
  • Flexible Rotor Tips
